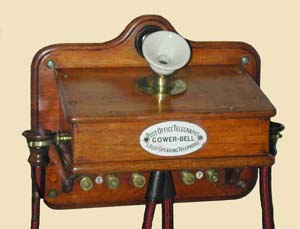

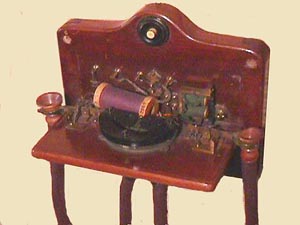

Gower Bell TelephonesLeft: BPO early model with porcelain mouthpiece . By Consolidated, from 1881. Right: Internal view. Photos courtesy Laurence Rudolf Left: With simple turned wooden mouthpiece

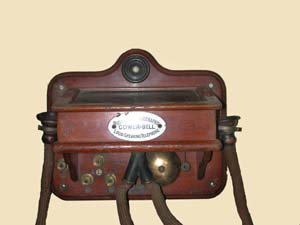

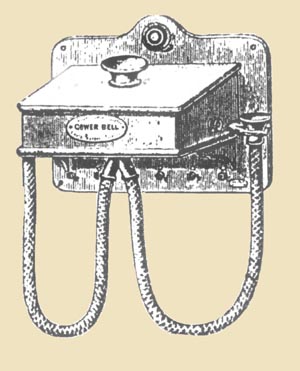

Left: Later BPO model without mouthpiece. Consolidated. Courtesy Laurence Rudolf Right: Simplified model by Moseley. They also built a vertically-mounted version. See Connected Earth website at http://connected-earth.com/Daysout/MuseumofScienceandIndustryinManchester/3Dobjects/obj009.htm
Left: Japanese model with Ader-type receivers. A similar style was also used in some European countries. Right: British Post Office second pattern by Consolidated. Note that Bell receivers are now used.
Left: Long wall pattern for BPO. This appears to have been updated with a Hunnings transmitter in the top box and a leter receiver at one side. The original Gower box now has a piece of solid timber in place of the diaphragm and is used as a writing slope. Right: Long wall pattern using original Gower Bell parts.

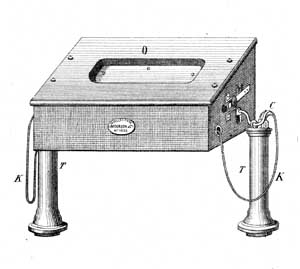

Left: French Gower by Mourlon
|
